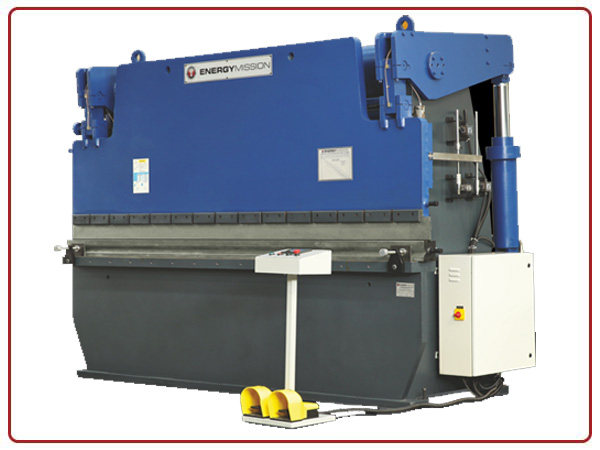

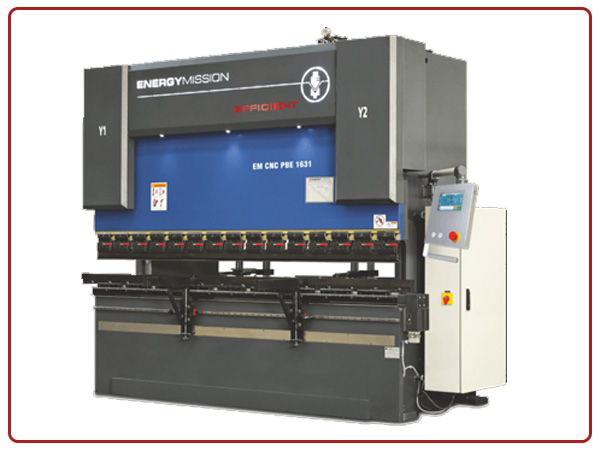

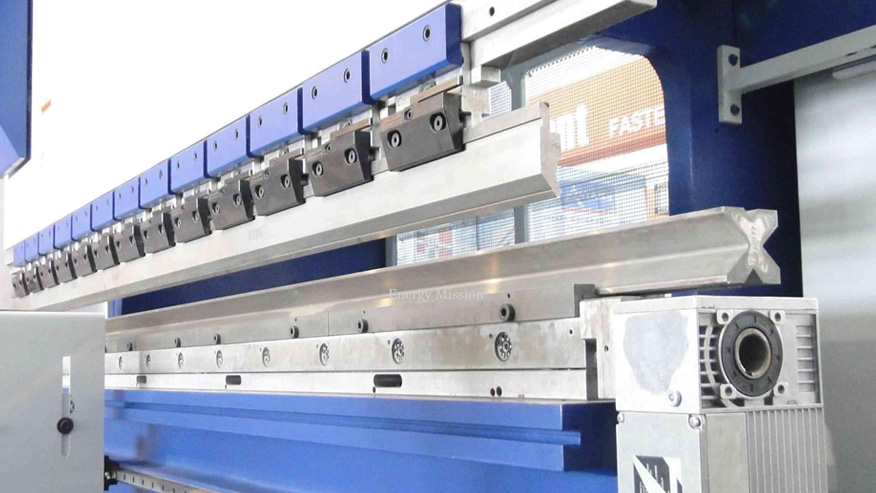

Energy Mission CNC Press Brake

We utilize the advanced Energy Mission CNC Press Brake to achieve high-precision bending and forming of sheet metal components. This state-of-the-art machine enables accurate angles, smooth finishes, and consistent repeatability, making it ideal for complex and large-scale fabrication requirements.

With CNC control and robust design, the Energy Mission Press Brake ensures efficiency, flexibility, and reduced setup time while handling a wide range of materials and thicknesses. Backed by our skilled team and stringent quality checks, we deliver cost-effective, reliable, and timely solutions tailored to the evolving needs of industries such as automotive, construction, engineering, and power equipment.

Specifications: Performance:
  1. Capacity : 250 MT
  2. Bending Capacity in M.S : 10mm X 100mm
  3. Table Size : 90mm X 3100mm
  4. Table Height : 850mm
  5. Clear Pass : 2600mm
  6. Ram Strokes : 350mm
  7. Open Height : 565mm
  8. Closed Height : 215mm
  9. Throat Depth : 450mm
  10. X- Axis Travel : 600mm
  1. RAM Speed mm/sec :
    • Approach : 80mm/sec
    • Pressing : 6mm/sec
    • Return : 80mm/sec
  2. Motor : 25 HP
  3. Oil Tank Capacity : 500 Liters
  4. Overall Dimensions :
    • Length : 3350mm
    • Width : 2100mm
    • Height : 2900mm
